QJZ Bearings

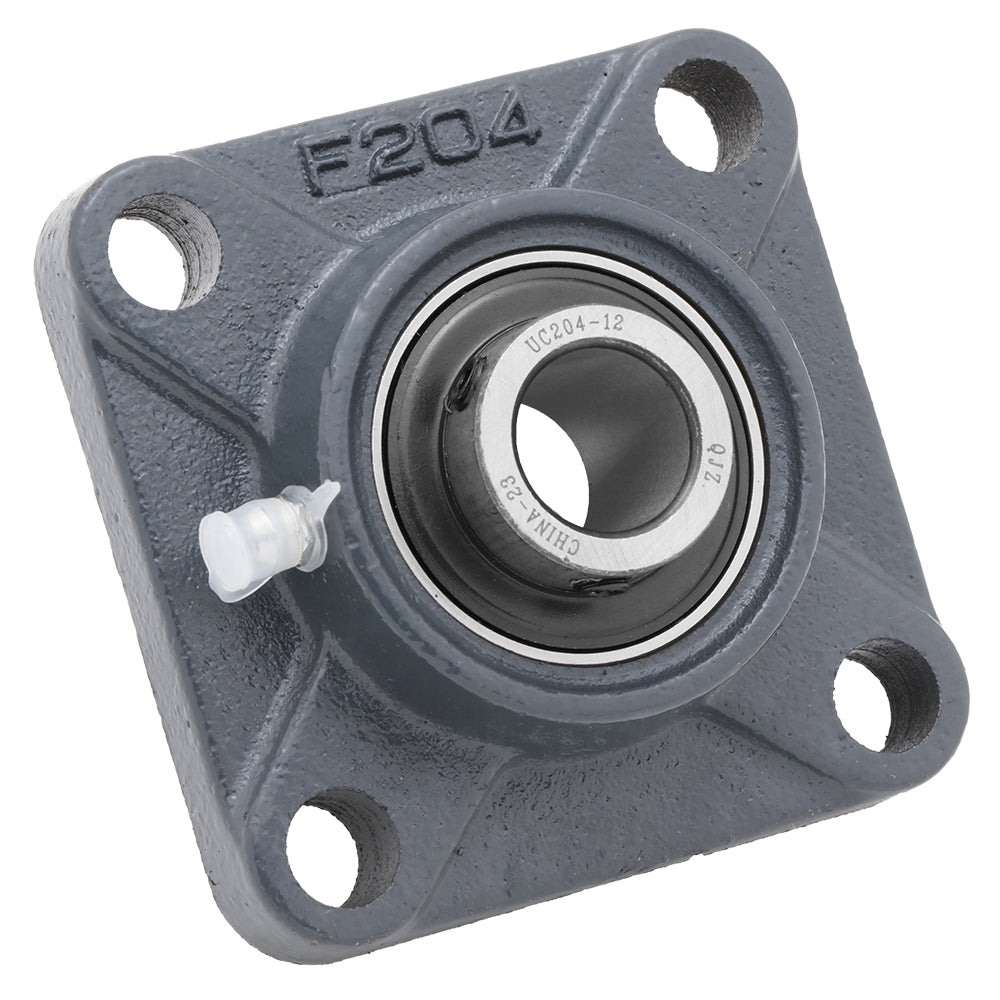

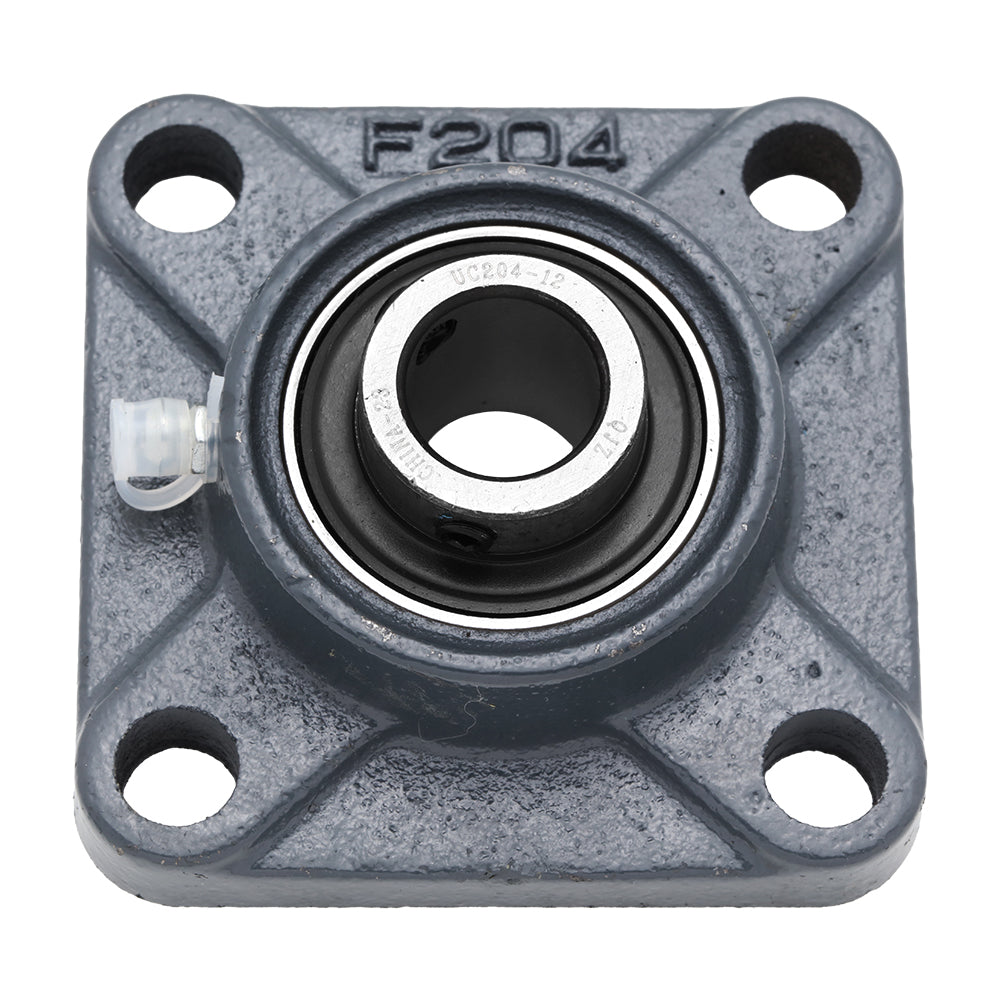

UCF204-12, 4-Bolt Flange Mounted Unit Bearing, 0.75" Bore (ID), 3/4 " Bore (ID), Insert Bearing: UC204-12
UCF204-12, 4-Bolt Flange Mounted Unit Bearing, 0.75" Bore (ID), 3/4 " Bore (ID), Insert Bearing: UC204-12
Regular price
$8.50
Regular price
Sale price
$8.50
Quantity
Couldn't load pickup availability
4-Bolt Flange Mounted Unit Ball Bearing
The UC series 4-bolt square flange mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Designed with a square flange housing and secure locking insert bearing, these units ensure stable mounting and long service life.
| Part Number | UCF204-12 |
|---|---|
| Shaft Bore (ID) | 0.75 in | 19.05 mm |
| Height | 1.311 in | 33.3 mm |
| Length | 3.386 in | 86 mm |
| Bolt to Bolt Spacing | 3.386 in | 86 mm |
Applications
- Conveyor systems
- Agricultural machinery
- Material handling
- General industrial machinery
