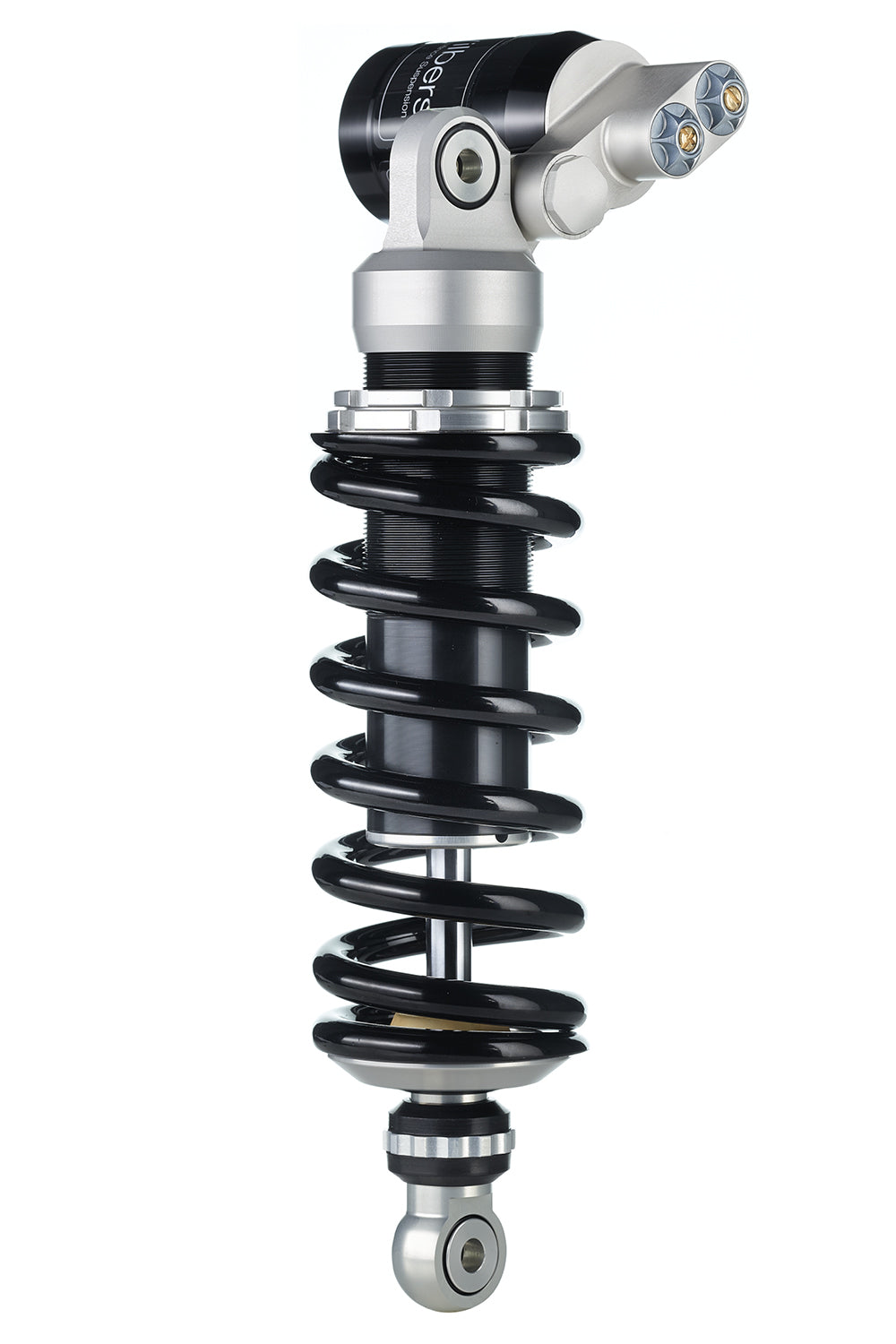

Shock Absorber Type 643 Competition QS

In series production, the Aprilia Tuono V4 1100 Factory KG features excessive rebound damping in the rear shock. The Wilbers shock optimizes both rebound and compression and offers a wider adjustment range than the stock unit, delivering clearly improved handling and increased safety.

Our racing team’s development work flows directly into the shock’s individual setup — you receive a genuine race-replica configuration. The fork is supplied with linear springs ex-works; the Wilbers solution also uses linear springs but with rate options matched to rider weight, intended use, and (for track use) prevailing conditions. Depending on usage, we recommend SAE 5 or GP5 fork oil; with the Wilbers conversion, negative spring travel and response are optimized accordingly.

Swiveling, diagonally mounted compression reservoir.
For tight installations, the reservoir mounts diagonally and swivels for optimal routing. A milled upper mount integrates the high- and low-speed compression adjusters; both compression and rebound feature 22 clicks. A pressure-control valve prevents hydraulic blocking and harsh impacts. Spring preload is continuously adjustable by hook spanner or optionally hydraulically. The reservoir angle can be re-indexed later by a trained Wilbers partner.

Product may vary from picture.
