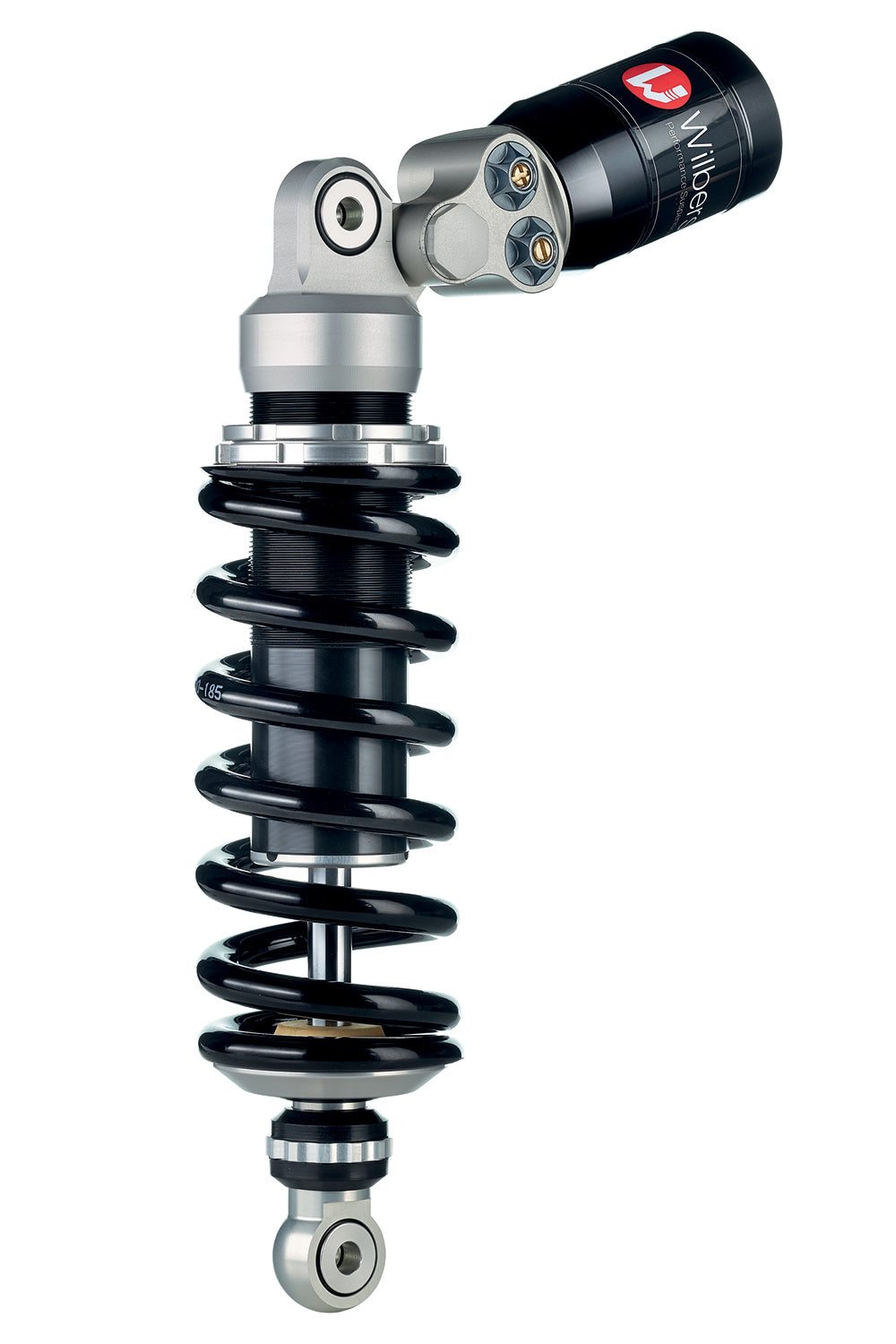

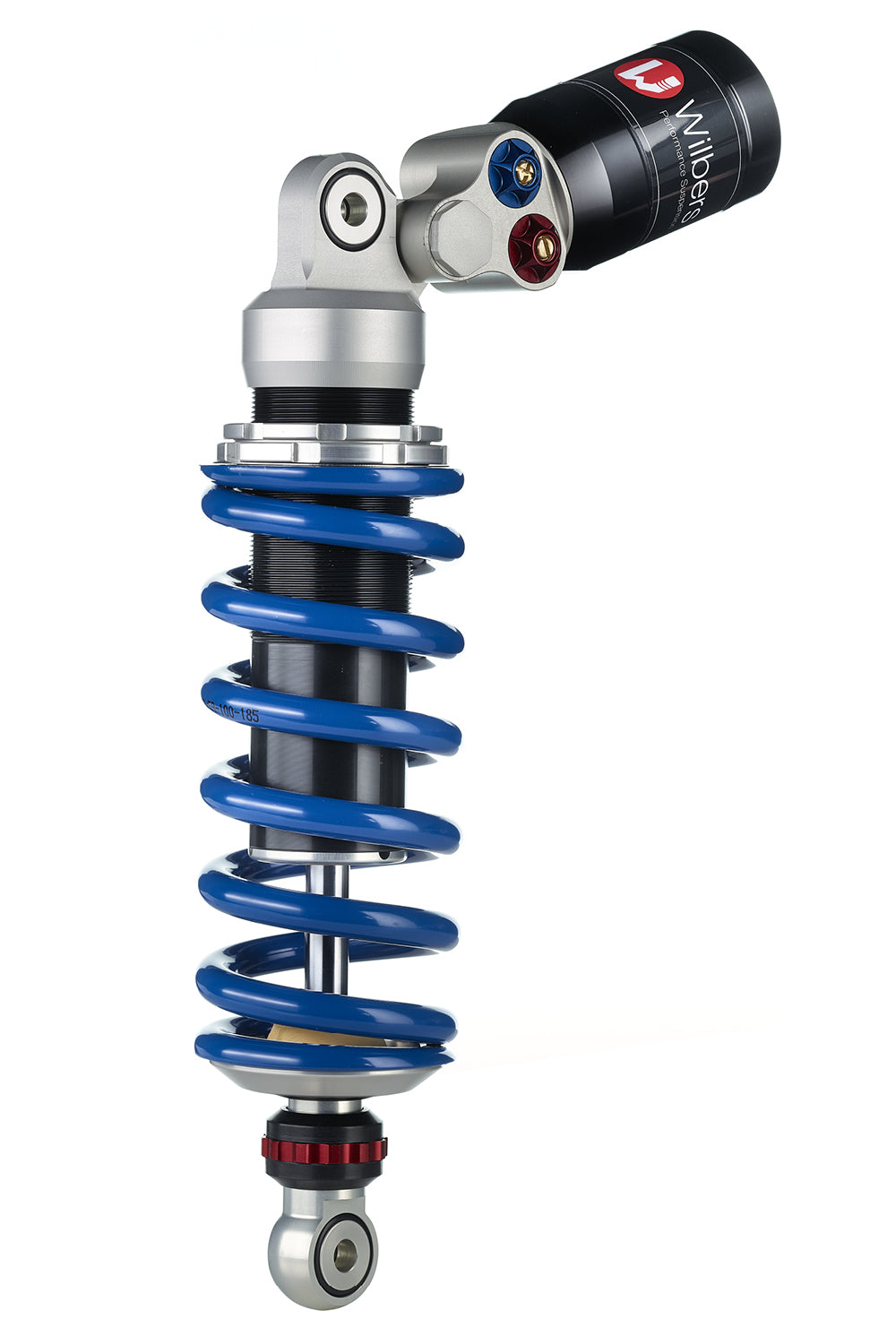

Swiveling compression reservoir, rear-facing (180°).

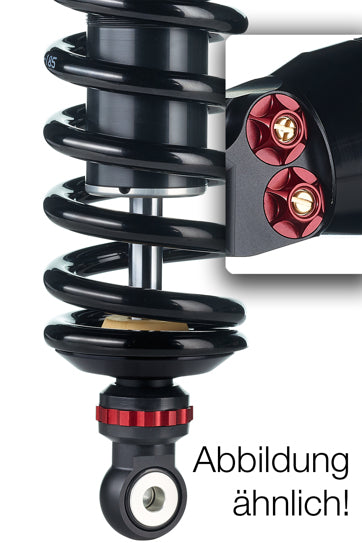

For motorcycles with tight packaging, the reservoir pivots 180° to the rear to create more installation freedom. The high- and low-speed compression adjusters are integrated directly into the milled upper mount, each with 22 precise clicks. A pressure-relief valve prevents hydraulic lock under maximum load, eliminating suspension turbulence from sudden impacts. Rebound is tuned externally via an open-bleed system with 22 clicks. Spring preload is continuously adjustable with a spanner. If required, any Wilbers service partner can re-index the reservoir angle.
