Pergola Post Base Bracket (for 6x6 Wood Posts)

Usage

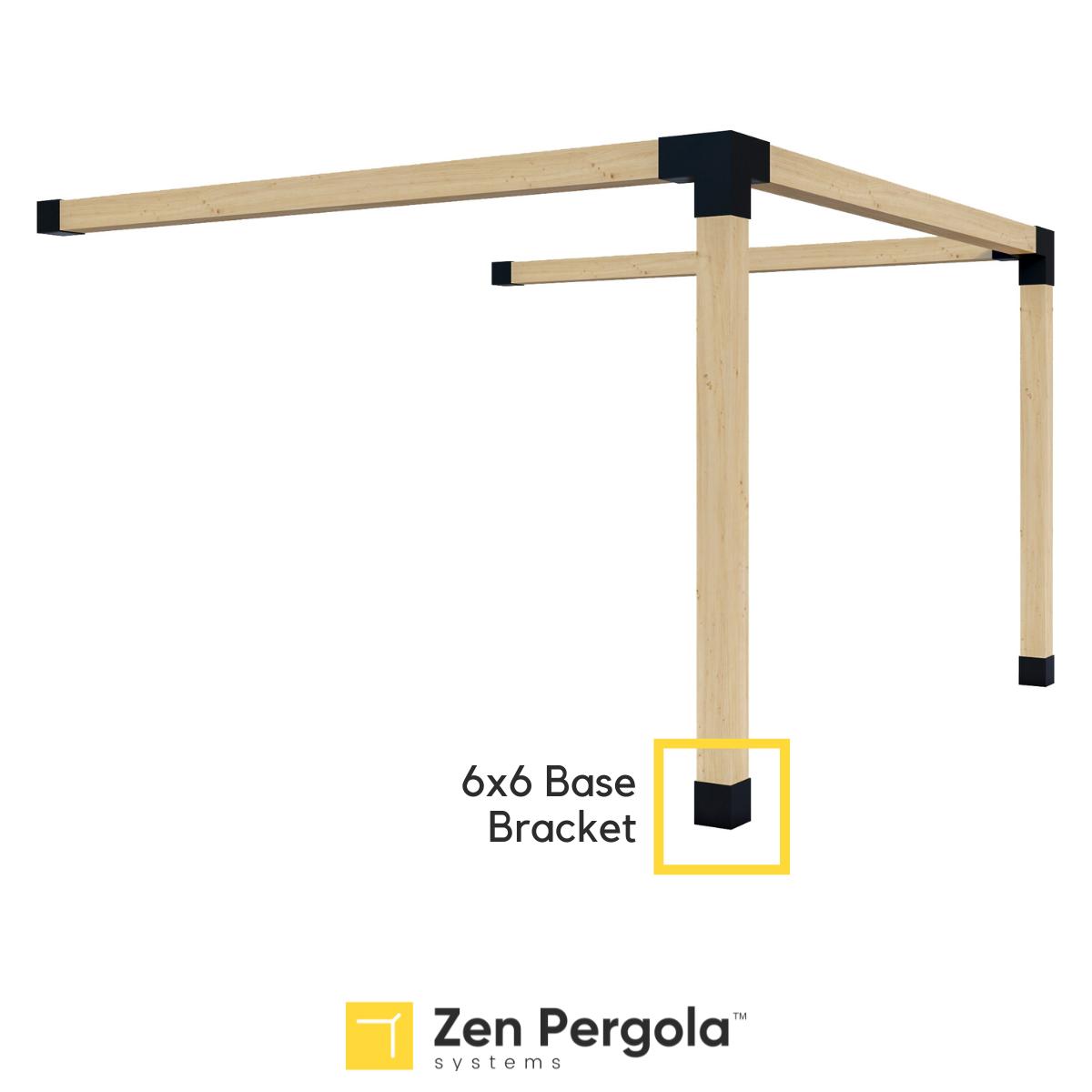

Pergola post base brackets are used to secure vertical posts to the ground or other solid foundation (i.e. cement slab, concrete footing, deck, landscape topper, etc.). Regardless of whether you're building a freestanding pergola or an attached pergola, you'll need several base brackets.

6x6 Pergola Bracket Features

• Made with premium quality steel
• 12-gauge steel (~2.6mm thick)
• Made for dressed lumber commonly called 6x6s (actual dimensions are 5.5” x 5.5”)
• Laser-cut, bent and welded
• Advanced weather coating technology to withstand extreme weather conditions
• Pre-drilled holes for securing wood and accessories to bracket
• Includes stainless steel screws (1.5-inch #10 self-tapping wood screws with pan/round head painted black) for securing wood into bracket
• Reduces your pergola build time by as much as 75%
• Backed by a 5-year warranty
• Shipped directly to your doorstep from Boise, Idaho

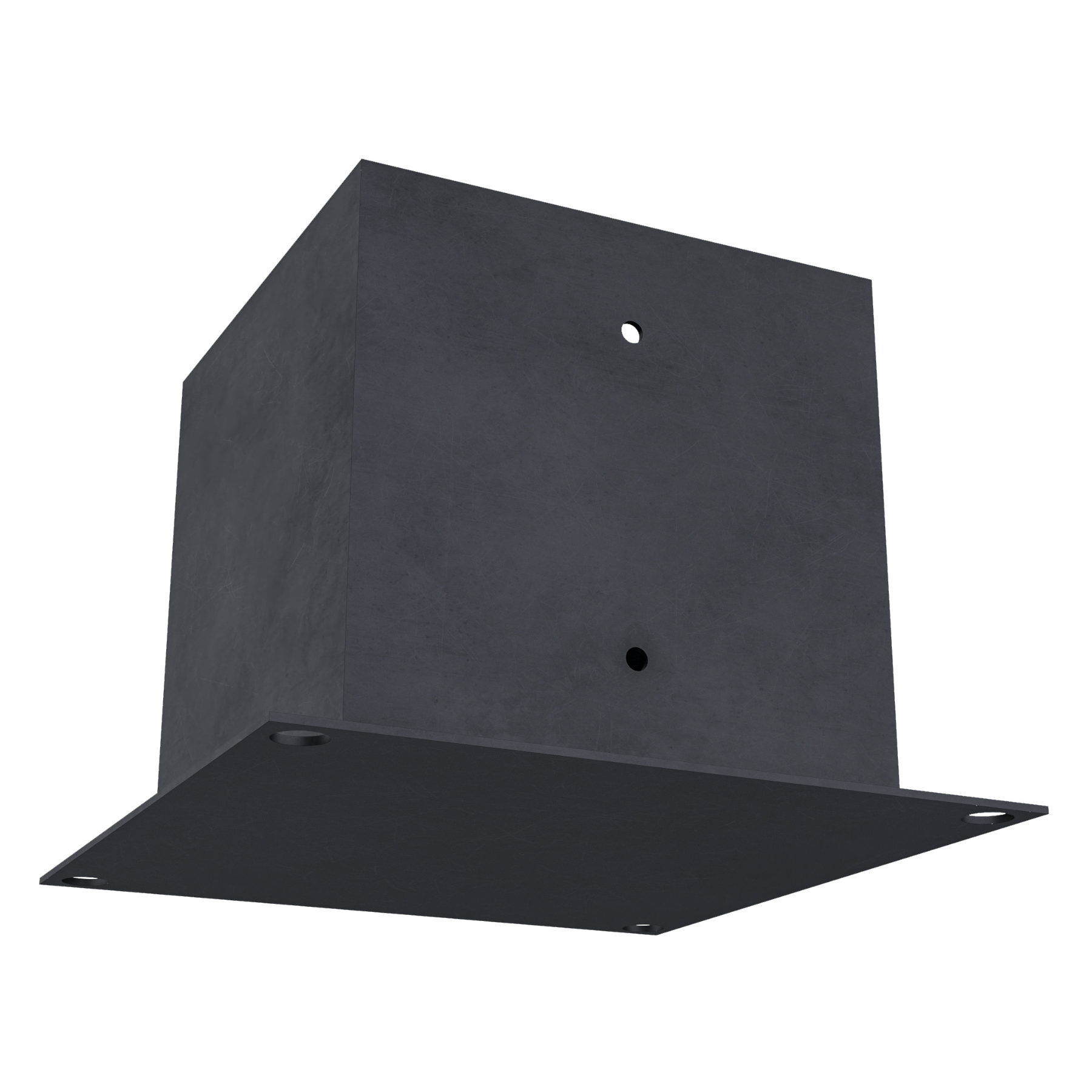

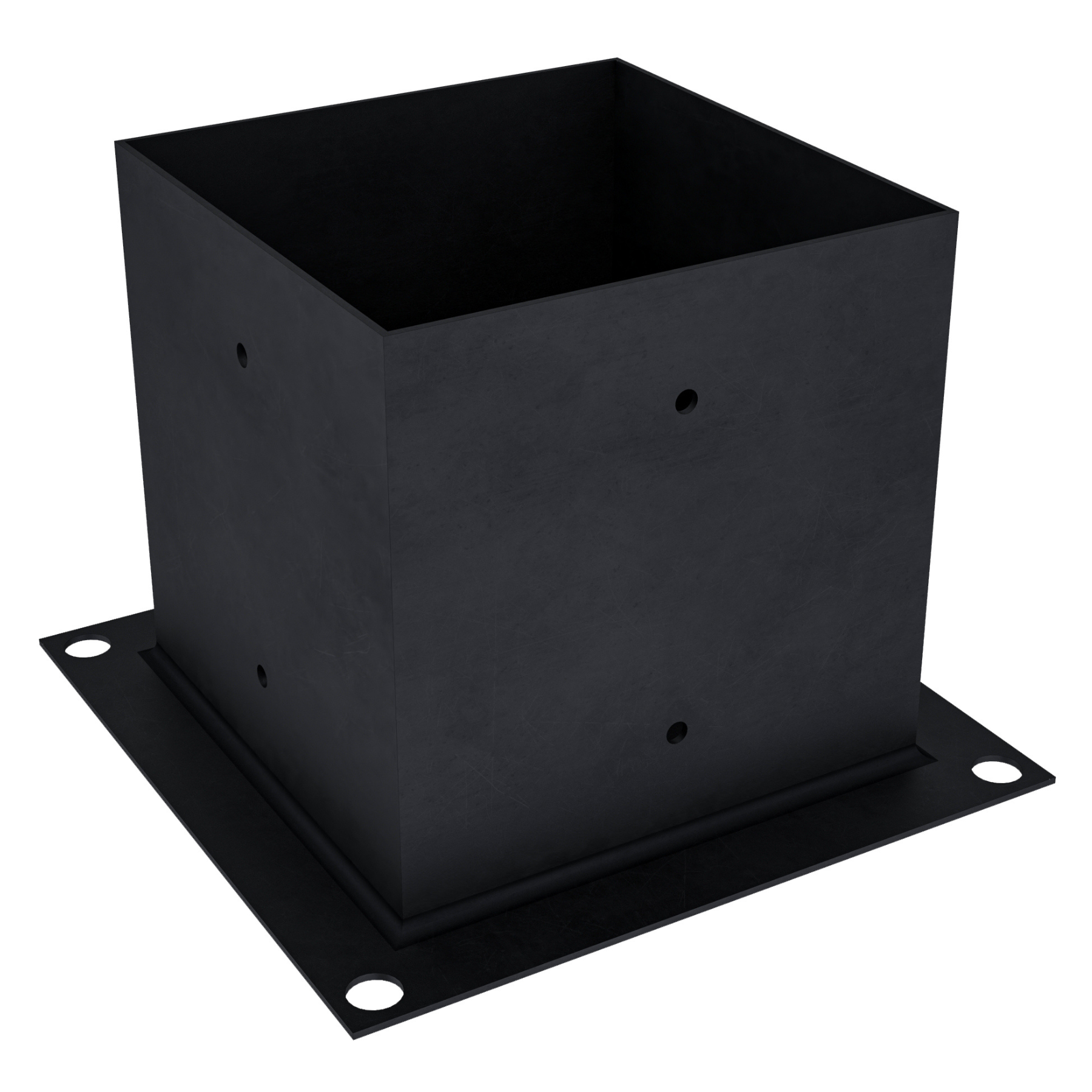

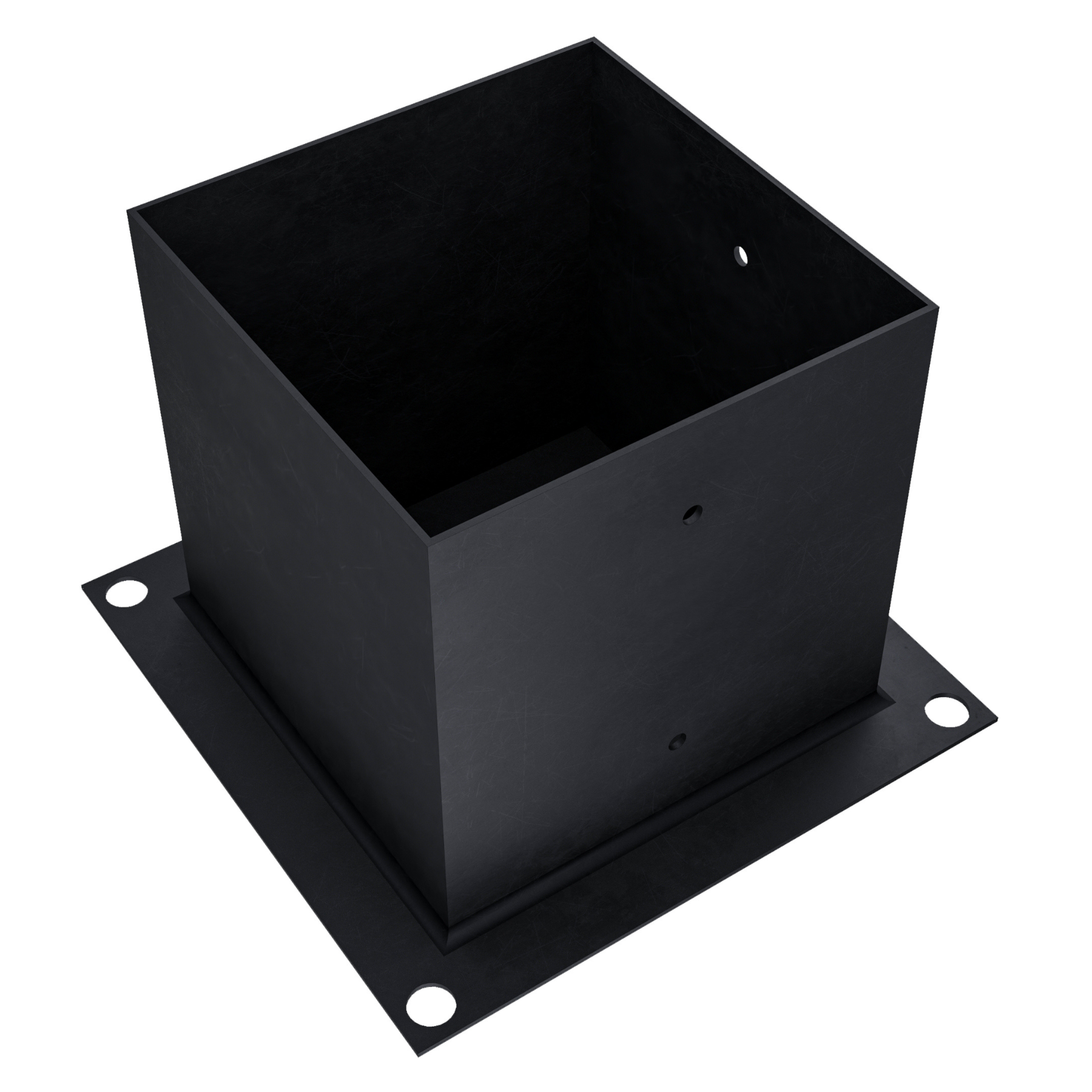

Dimensions & Specifications

• Channel (arm) width: 5.8 inches (148 mm)
• Channel (arm) depth: 5.8 inches (148 mm)
• Channel (arm) height: 5.8 inches (148 mm)
• Flange (lip) width: 1 inch (25mm) all the way around
• Number of arms: 1
• Inner dimensions of arm: 5.6 x 5.6 inches (143 x 143 mm) - made for 6x6 wood posts (which measure 5.5 x 5.5 inches)
• Holes on arm: 4 (2 holes on 2 sides - additional holes can be drilled) - 0.25-inch holes ideal for #10 size screws (included)
• Holes on bottom plate: 4 (1 hole in each corner) - 0.5-inch holes for larger anchoring hardware (not included)
• Weight: 4.5 pounds
• Not included: wood post, anchoring hardware for securing bracket to ground/base
