Pergola 5-Arm Post Bracket (for 6x6 Wood Posts)

Usage

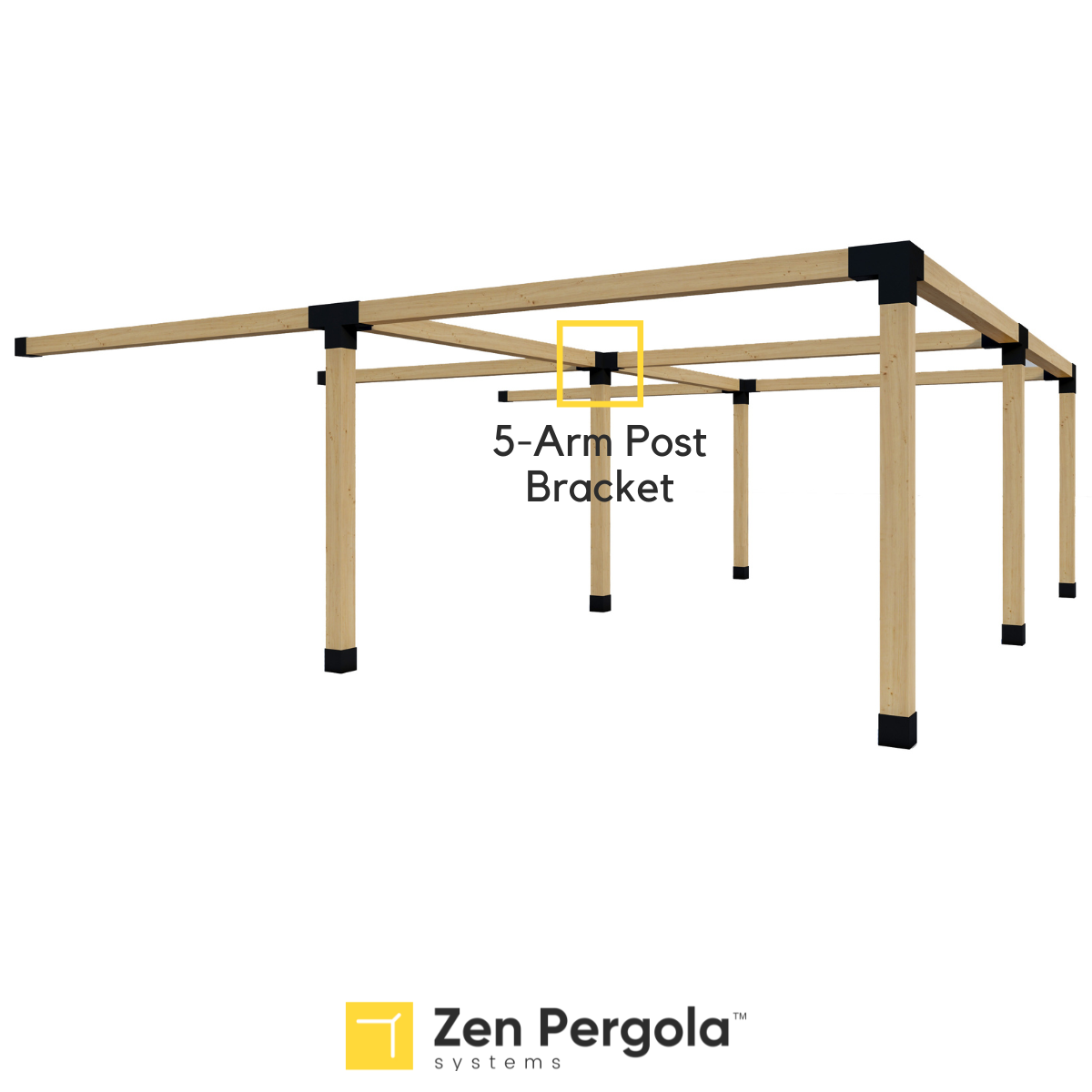

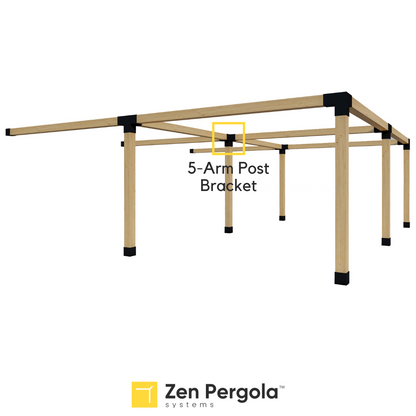

5-arm post brackets are only used when both the width and depth of the pergola exceed 12 feet (and therefore both the width and depth sides are divided into 2 sections, with a post in the middle of each). The 5-arm bracket goes in the middle of both freestanding and attached pergola kits.

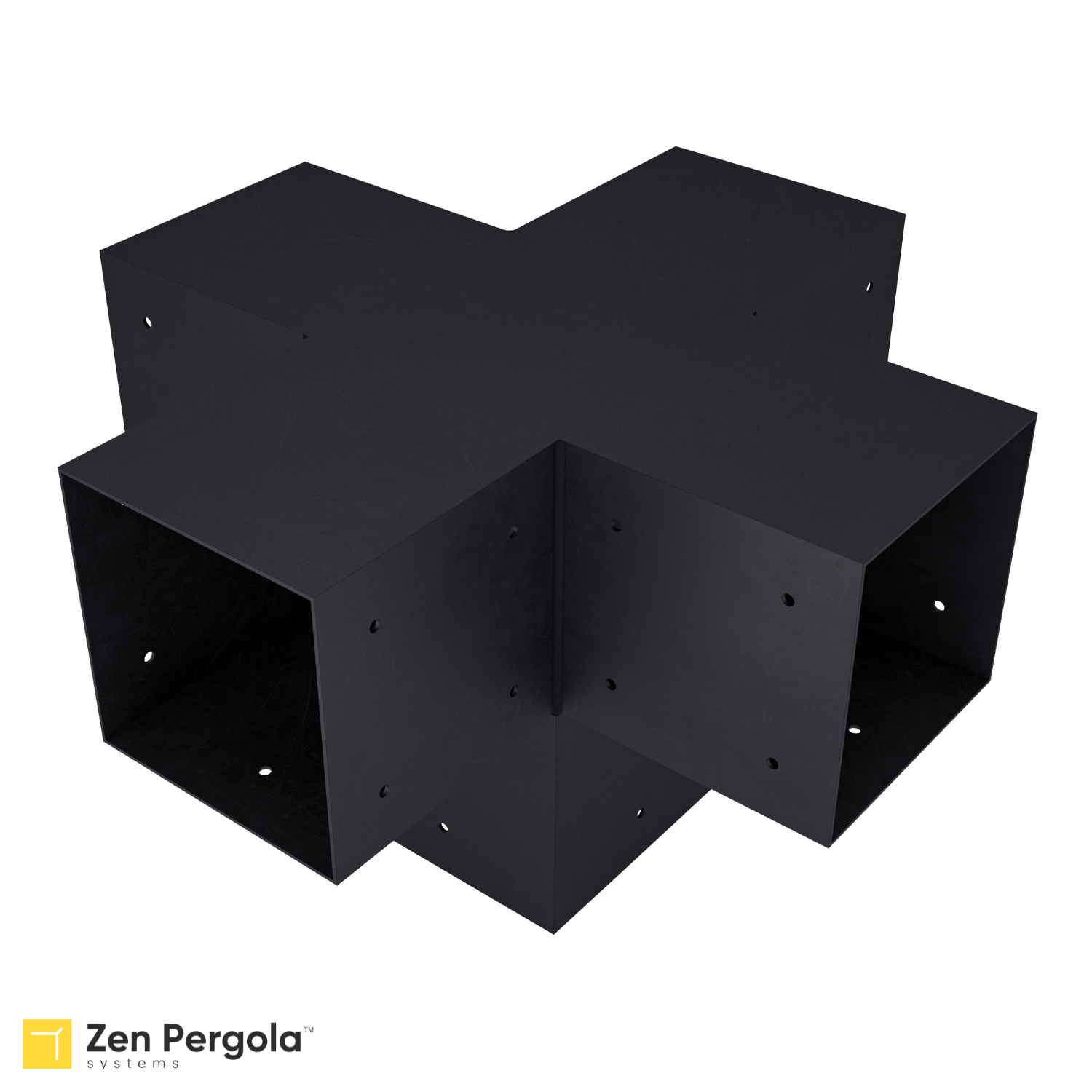

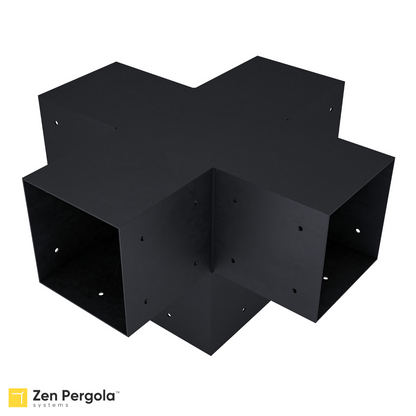

6x6 Pergola Bracket Features

• Made with premium quality steel
• 12-gauge steel (~2.6mm thick)
• Made for dressed lumber commonly called 6x6s (actual dimensions are 5.5” x 5.5”)
• Laser-cut, bent and welded
• Advanced weather coating technology to withstand extreme weather conditions
• Pre-drilled holes for securing wood and accessories to bracket
• Includes stainless steel screws (1.5-inch #10 self-tapping wood screws with pan/round head painted black) for securing wood into bracket
• Reduces your pergola build time by as much as 75%
• Backed by a 5-year warranty

Dimensions & Specifications

• Width: 17.5 inches (444 mm)
• Depth: 17.5 inches (444 mm)
• Height: 11.65 inches (296 mm)

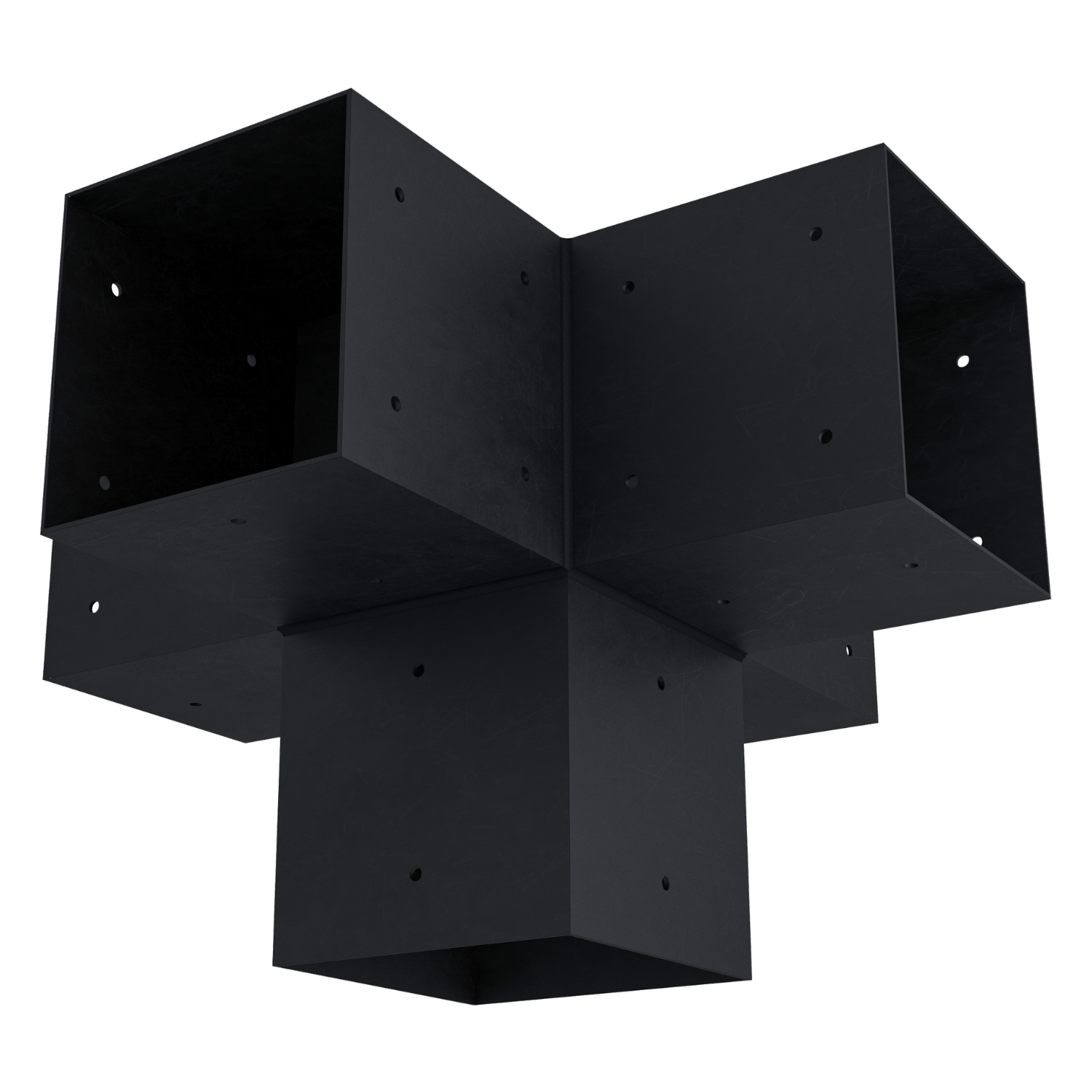

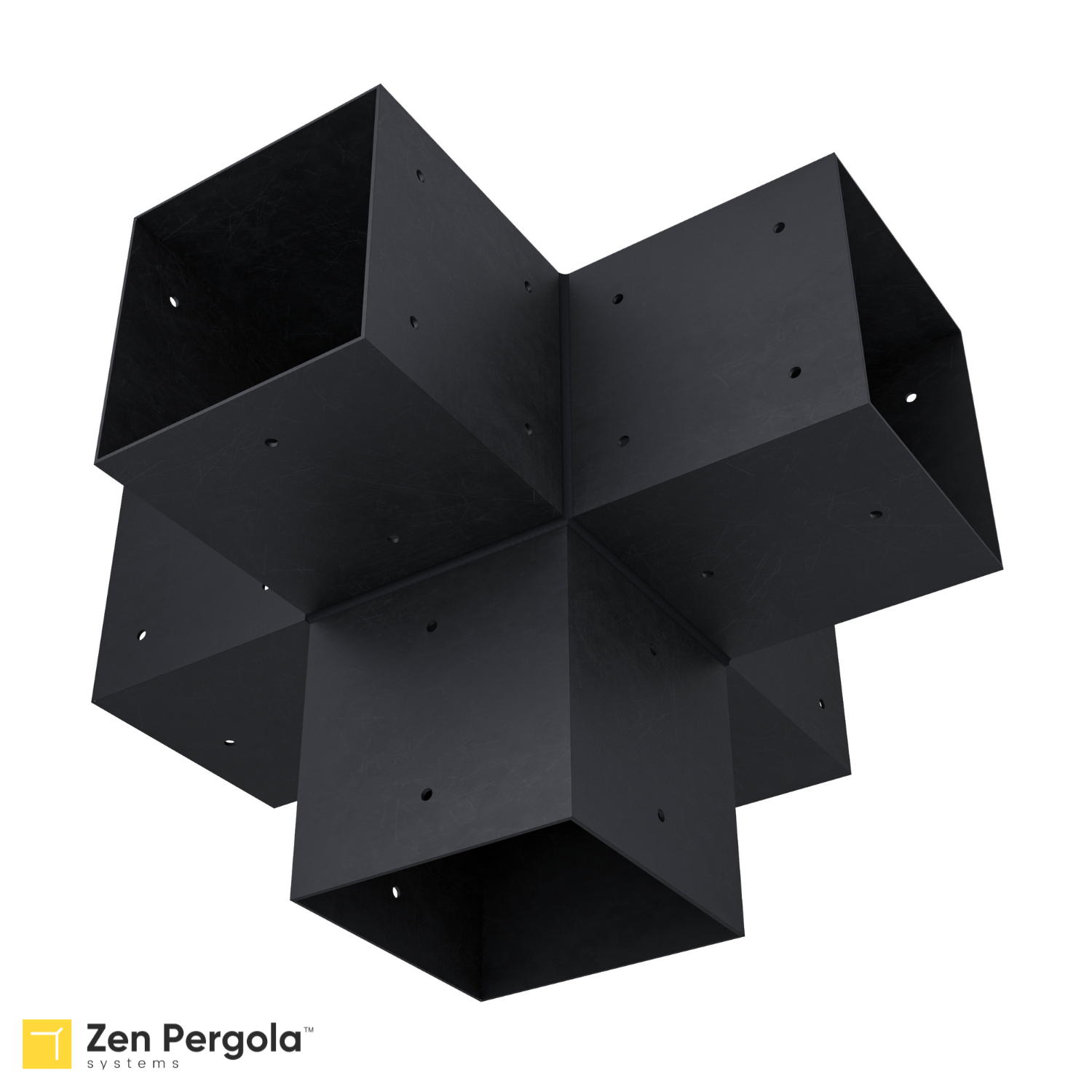

• Number of arms: 5 (1 vertical + 4 horizontal)
• Inner dimensions of each arm: 5.6 x 5.6 inches (143 x 143 mm) - made for 6x6 wood posts (which measure 5.5 x 5.5 inches)
• Holes on vertical arm (to ground): 8 (2 holes on all 4 sides)

• Holes on each of the 4 horizontal arms (for beams): 10 (2 holes on the side facing down + 4 holes on each of the 2 sides, no holes on the top side)
• Hole size: 0.25 inch (6.35 mm) - ideal for #10 size screws (included)
• Weight: 20.0 pounds
• Not included: wood posts
