HEL Performance Clutch Line for Tremec T56 Transmission using an OEM-style LS7 Slave Cylinder Flexible Clutch Feed Line and Remote Bleed Line HEL Stainless Steel Braided
HEL Performance Clutch Line for Tremec T56 Transmission using an OEM-style LS7 Slave Cylinder Flexible Clutch Feed Line and Remote Bleed Line HEL Stainless Steel Braided
Couldn't load pickup availability
Tremec T56 clutch feed and bleed lines. Both are fully fire-sleeved with stainless steel fittings, bleed nipple and stainless braided hose. For ease of installation, the feed has a AN3 female swivel fitting to attach the remainder of your clutch line. The use of a remote bleed line eases clutch servicing due to greatly improved access and visibility.
For use with OEM-style LS7 slave cylinders (as in photos). Clutch feed line input is 3/8" x 24 UNF (AN3).
We offer an optional quick release dry break fitting to speed up dropping/installing the box in time sensitive situations, eliminating the need for re-bleeding. If you choose this option, you will need to spec up a custom line to come from the dry break.
SLAVE CYLINDER NOT INCLUDED.

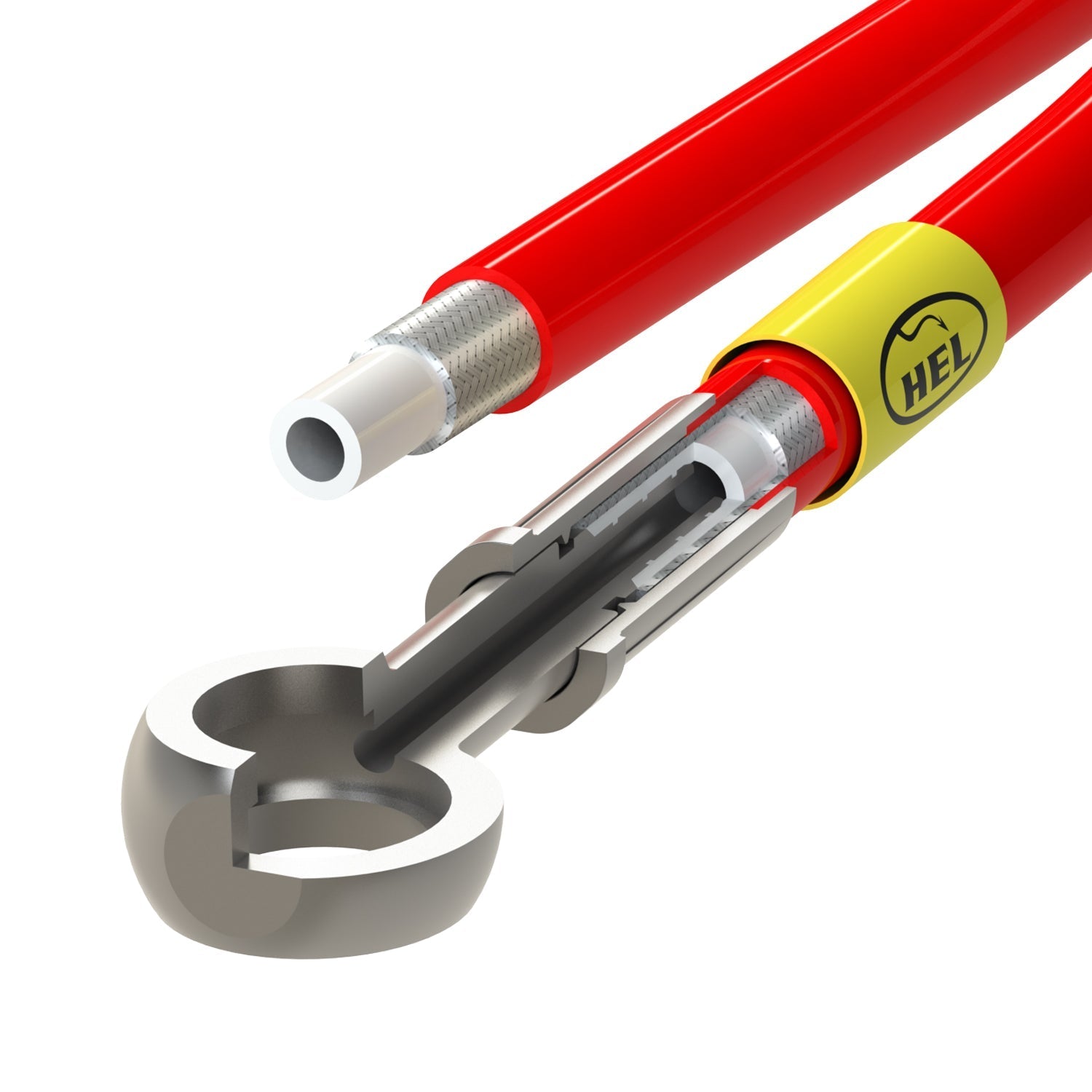

Take a look at the unique manufacturing and assembly process behind our flagship braided brake hoses.
| Internal Material (Core) | PTFE |
| Internal Material (Overbraid) | Stainless Steel - 303/304 |
| External Material (Outer) | PVC (Clear/Color) |
| Fitting Material (Hose End) | Stainless Steel - 303/304 |
| Internal Diameter | 3.5mm (0.13") |
| External Diameter | 7.5mm (0.29") |
| Minimum Bend Radius | 38.0mm (1.49") |
| Minimum Temperature | -70°C / -94°F |
| Maximum Temperature | 260°C / 500°F |
| Maximum Operating Pressure | 290 BAR / 4,206 PSI |
| Burst Pressure | 870 BAR / 12,618 PSI |
| Finish | Clear/Colored PVC |
| Brand | HEL Performance |
