VM Hardware
DeWalt DWHT83193 12" Large Trigger Clamp
DeWalt DWHT83193 12" Large Trigger Clamp
Regular price
$17.31
Regular price
Sale price
$17.31
Quantity
Couldn't load pickup availability

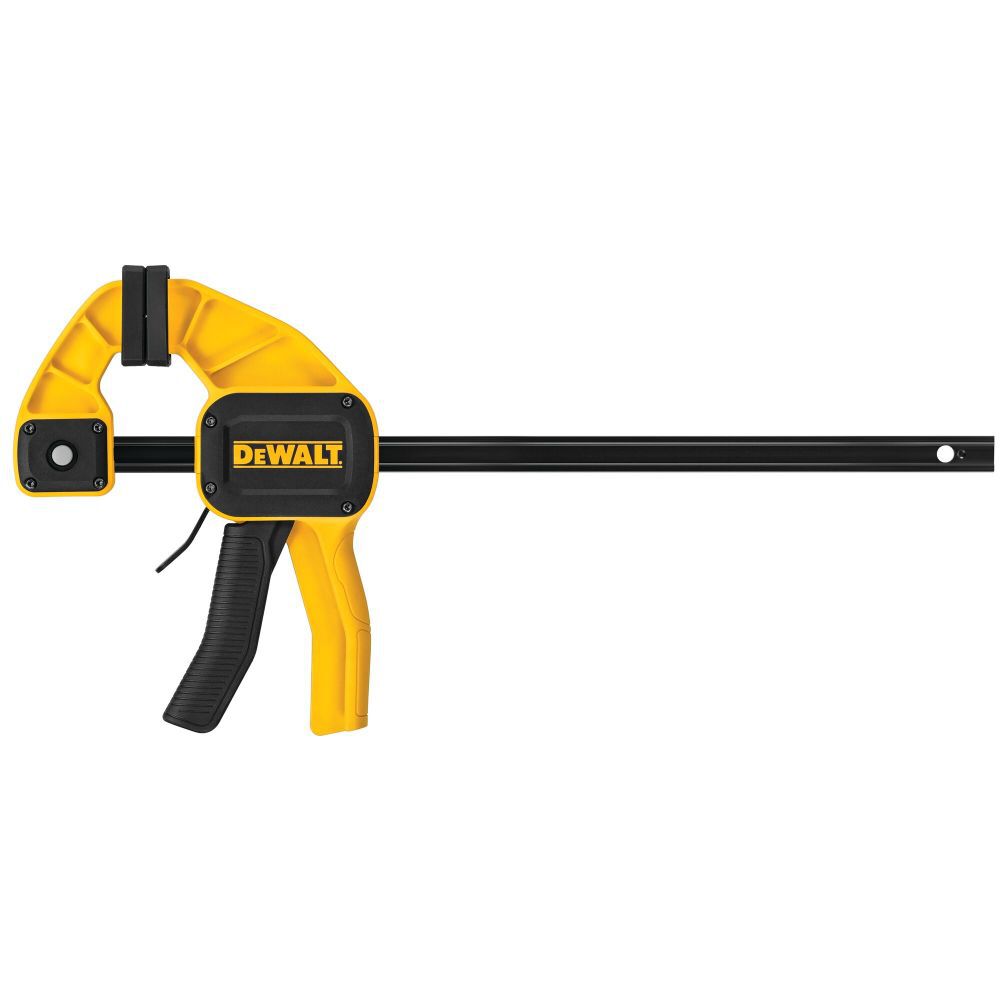

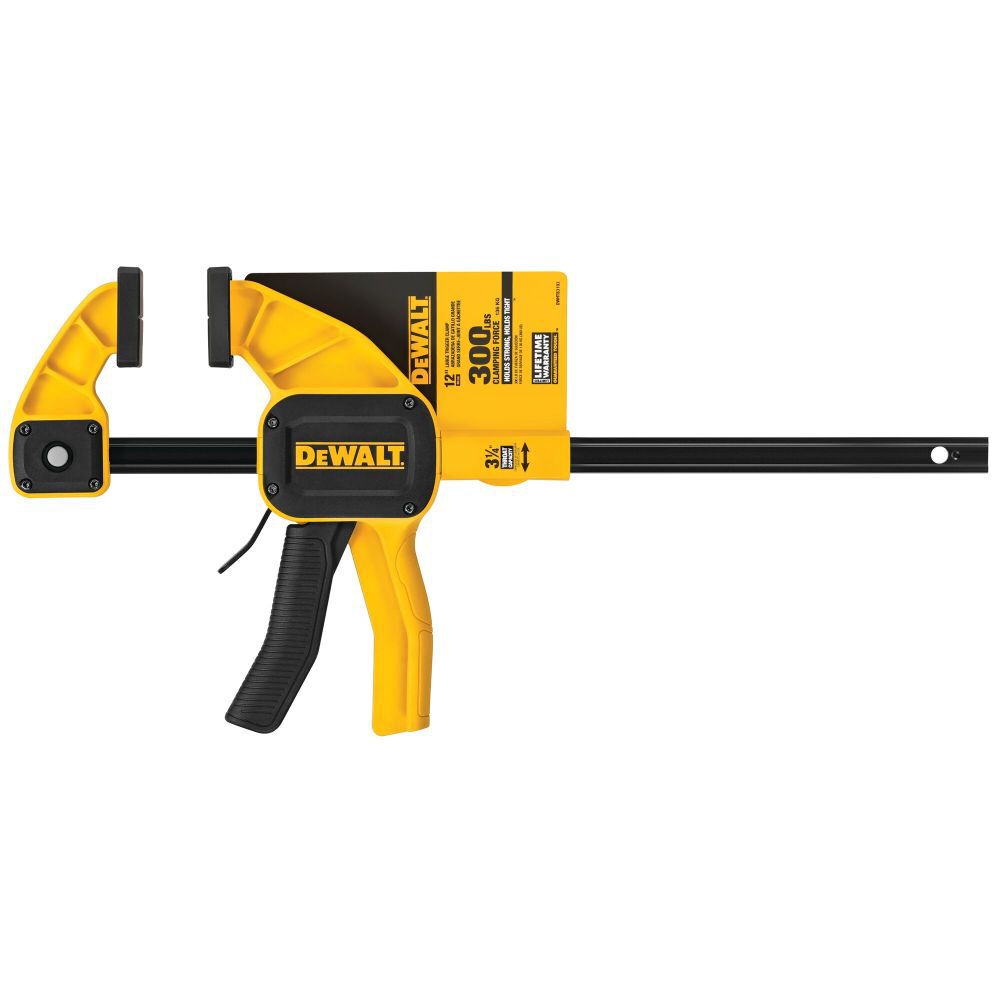

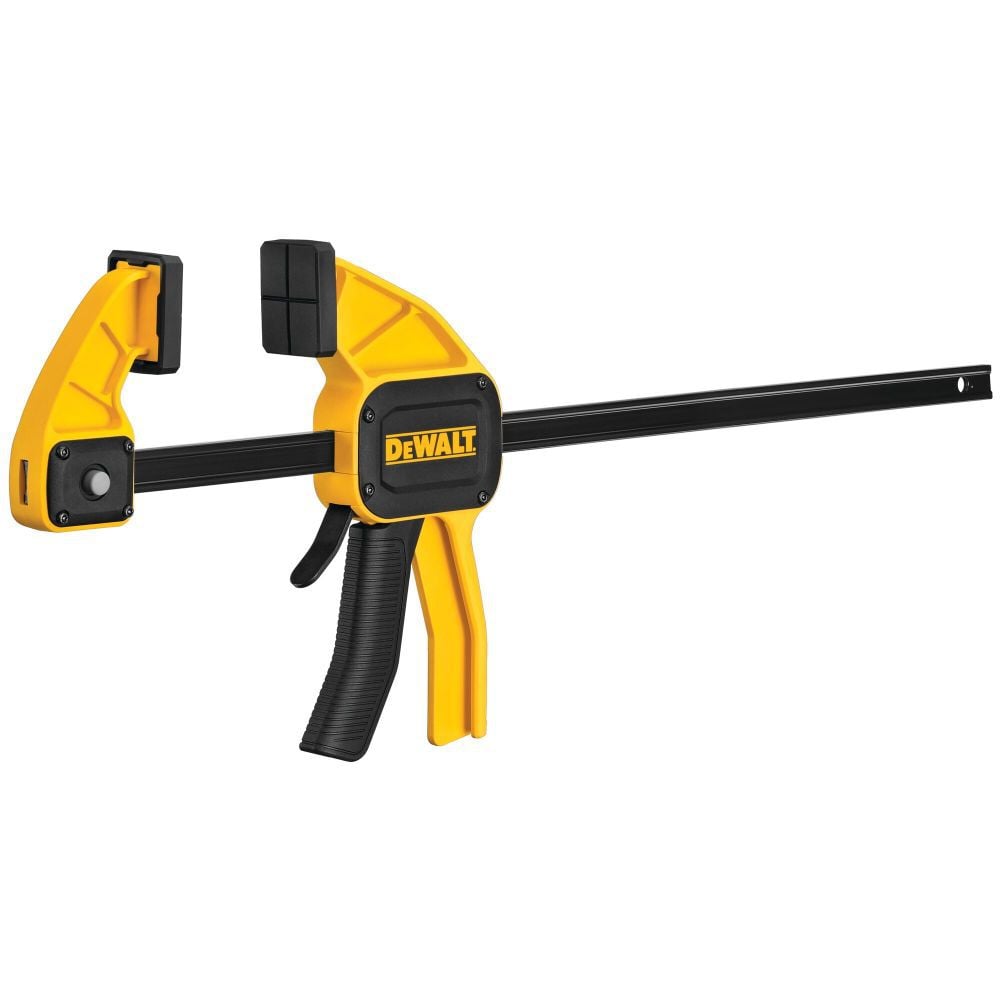

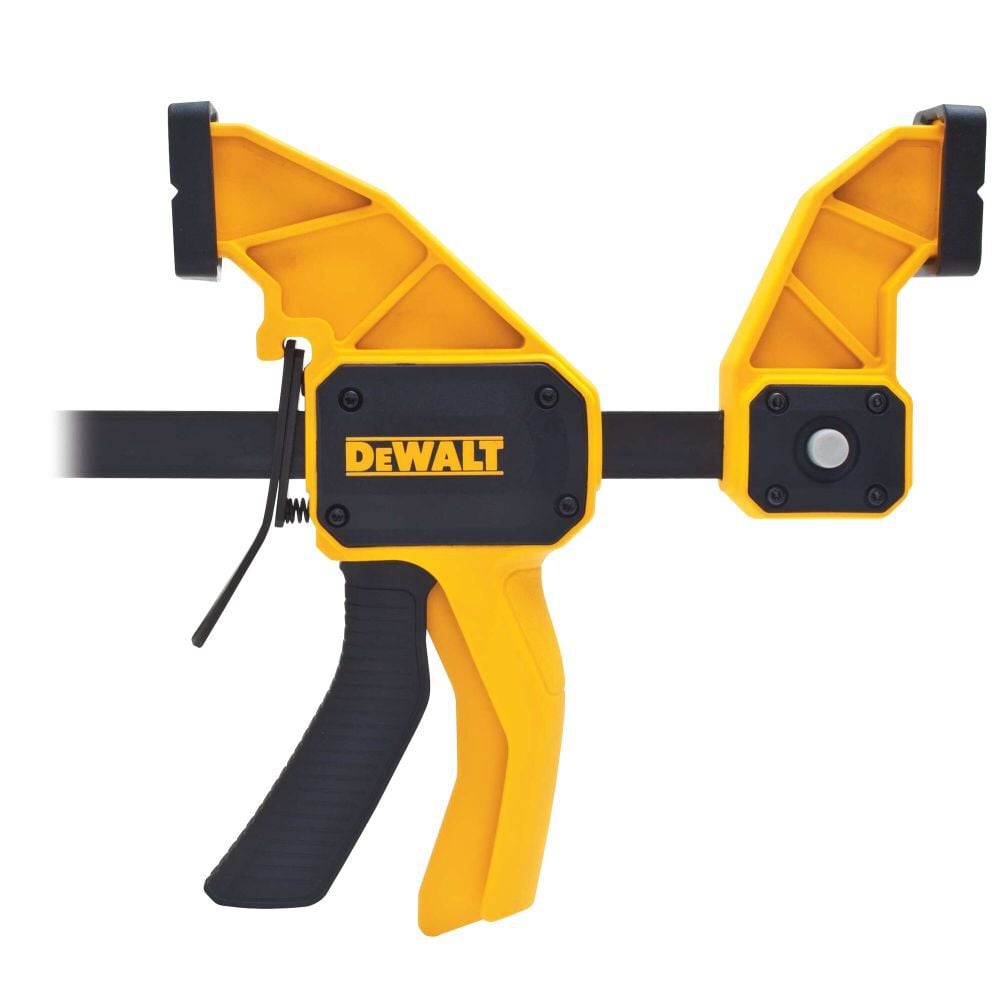

DeWalt DWHT83193 12" Large Trigger Clamp
The 24-inch large bar clamp is versatile and easy to use. Its reinforced nylon body and heat-treated steel bar are strong and durable. With 300-pounds of clamping force, 3-1/4" throat depth, quick change button for easy conversion to a spreader and removable jaw pads to help reduce marring, this clamp was build to exceed the expectations of professional contractors.
Applications
- General Contractors
- Cabinet Makers
- Cabinet Installers
- Carpenters
Specifications
|
Average Clamping Force [Kg]
|
135
|
|
Bar Length [mm]
|
790
|
|
Bar Material
|
Black Oxide Carbon Steel I-Beam
|
|
Bar Thickness [mm]
|
5
|
|
Body Material
|
Plastic
|
|
Clamping Capacity [mm]
|
620
|
|
Clamping Force [Kg]
|
135
|
|
Clamping Force [lbs]
|
300
|
|
Clamps and Vices Product Type
|
Trigger Clamp / One Handed Bar Clamp
|
|
Handle Material
|
Plastic
|
|
Has Quick Release Mechanism?
|
Yes
|
|
Has Safety Stop?
|
Yes
|
|
Jaw Depth [mm]
|
50
|
|
Jaw Pads Material
|
Non-Marring
|
|
Jaw Pad Type
|
Fix
|
|
Jaw Width [mm]
|
40
|
|
Max. Clamping Force [Kg]
|
135
|
|
Max. Jaw Opening [mm]
|
625
|
|
Packaging
|
Hang Tag
|
|
Pad Dimensions l x w x h [in]
|
50mm x40mm x9mm
|
|
Product Dimensions w/o Packaging l x w x h [in]
|
795mm x270mm x45mm
|
|
Product Height [mm]
|
45
|
|
Product Length [mm]
|
795
|
|
Product Weight [g]
|
800
|
|
Product Weight [Kg]
|
0.8
|
|
Product Width [mm]
|
270
|
|
Spreading Capacity [mm]
|
790
|
|
Spreading Function
|
Yes
|
|
Sustained Clamping Force [Kg]
|
135
|
|
Throat Depth [in]
|
3-1/4
|
|
Throat Depth [mm]
|
80
|
Additional Features
- One-handed operation for ease of use
- Quick change button allows for easy conversion to a spreader
- Removable jaw pads help reduce marring
Includes
- Clamp
Warranty Information
- 1 Year Limited Warranty
We’re confident of the quality of our products, and we’ll repair, without charge, any defects due to faulty materials or workmanship within the specified warranty.
