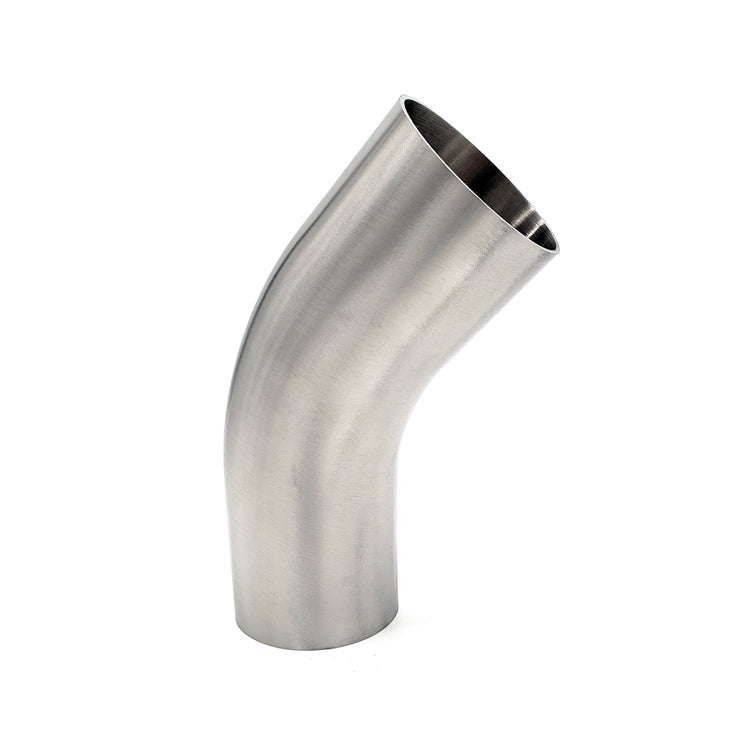

4.000" 16ga Tight Radius Butt-Weld 45° Elbow with Tangents - (L2KS - Special) - Polished OD/ID - 304 Stainless

Tight Radius Butt-Weld 45° Elbow with Tangents (L2KS – Special) – 304 Stainless Steel

PNW Sanitary Tight Radius Butt-Weld 45° Elbows with Tangents (L2KS – Special) provide a compact, permanent 45° directional transition for welded stainless steel process lines. Featuring a significantly reduced centerline radius compared to standard sanitary 45° elbows, this tight-radius design is ideal for space-limited installations, skid-mounted systems, close-coupled equipment, and piping layouts requiring sharp directional changes without sacrificing hygienic performance. Manufactured from 304 stainless steel and polished to a 32Ra sanitary finish on both the ID and OD, these elbows support smooth product flow and efficient cleanability.

As part of the PNW Special-series lineup, these fittings are produced to the same dimensional and material practices commonly associated with 3-A sanitary components. However, because they are not laser-marked with size or alloy identifiers, they are not 3-A certified. For projects requiring a fully certified elbow, please see our 3-A Certified 45° Elbow with Tangents.

Features

• 304 stainless steel construction
• Tight-radius 45° design for compact sanitary piping layouts
• Tangents included for improved weld accessibility and alignment
• Polished 32Ra ID/OD sanitary finish
• Produced to 3-A dimensional/material standards (non-certified due to no laser marking)
• Available in multiple sanitary tube OD sizes
• Designed for permanent welded installation

Applications & Compatibility

Ideal for OEMs, equipment fabricators, and process engineers needing a compact 45° welded elbow with tangents for tight-space sanitary systems where 3-A certification is not required. Compatible with standard sanitary tubing and weld fittings from major industry brands. Suitable for food, beverage, brewery, cosmetic, nutraceutical, and light pharmaceutical process environments.

Quality & Material Verification

All PNW Sanitary Special-series fittings undergo in-house Positive Material Identification (PMI) using the SciAps X-550 handheld XRF spectrometer to verify alloy chemistry and ensure complete material traceability.
