QJZ Bearings

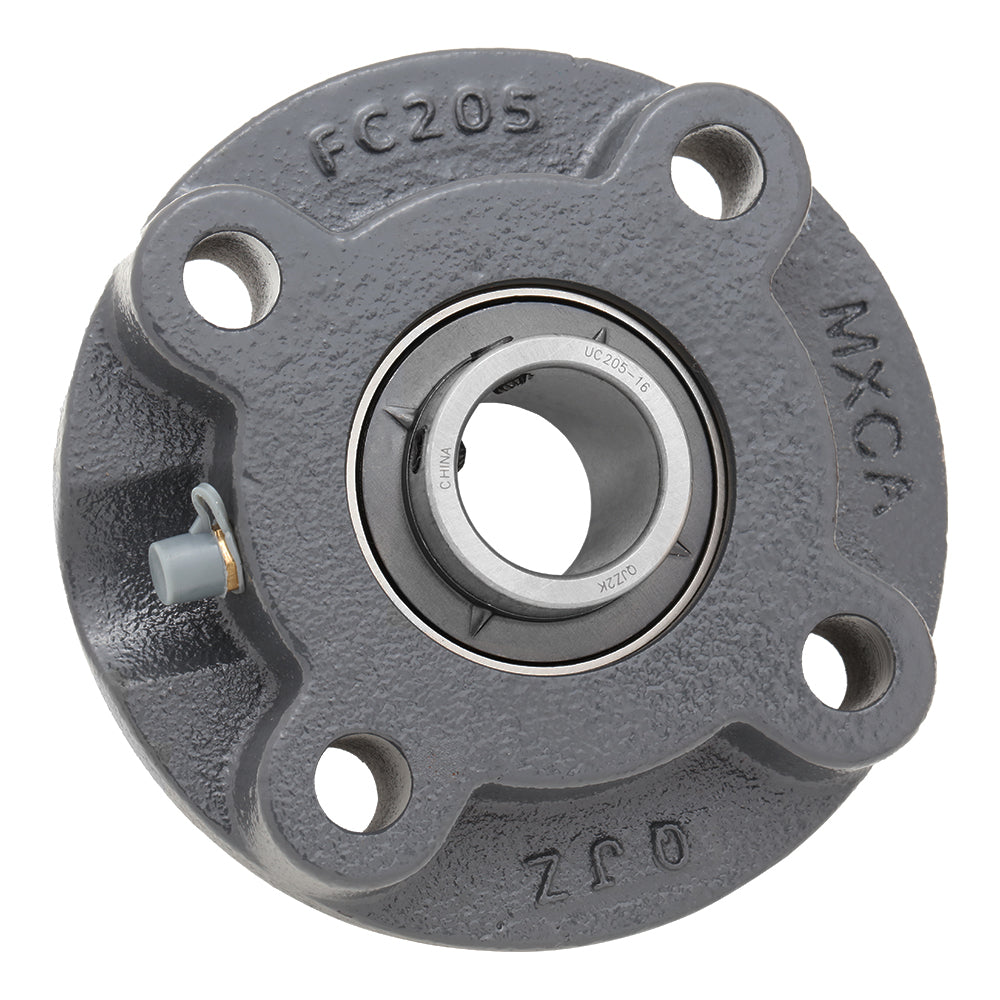

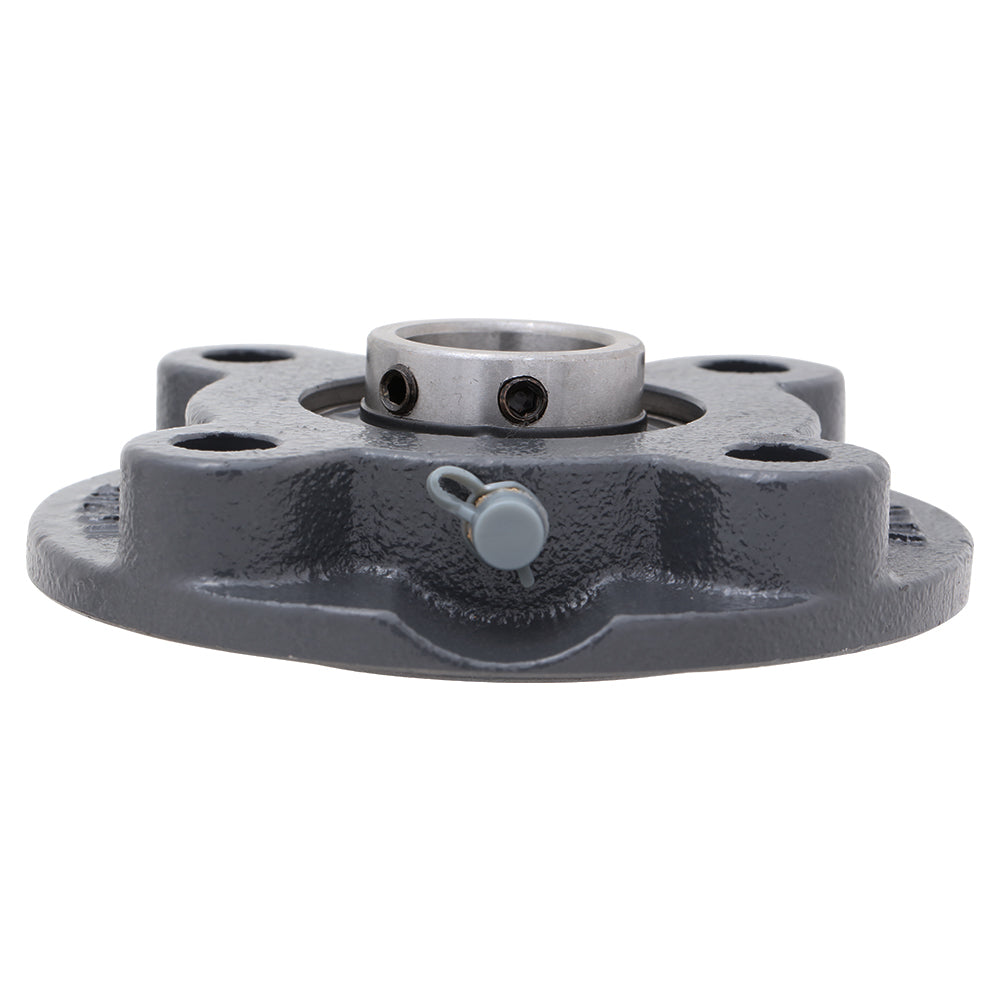

UCFC205-16, 4-Bolt Flange Mounted Ball Bearing, 1.0"Bore (ID), Insert Bearing: UC206-16, Housing: FC205
UCFC205-16, 4-Bolt Flange Mounted Ball Bearing, 1.0"Bore (ID), Insert Bearing: UC206-16, Housing: FC205
Regular price
$17.99
Regular price
Sale price
$17.99
Quantity
Couldn't load pickup availability
4-Bolt Flange Mounted Unit Ball Bearing
The UCFC series 4-bolt flange mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit features a round flange housing with secure locking insert bearing for stable mounting and long service life.
| Part Number | UCFC205-16 |
|---|---|
| Shaft Bore (ID) | 1 in | 25.4 mm |
| Bolt Circle Diameter | 3.543 in | 90 mm |
| Height | 1.169 in | 29.7 mm |
| Length | 4.528 in | 115 mm |
Applications
- Conveyor systems
- Agricultural machinery
- Material handling
- General industrial machinery
